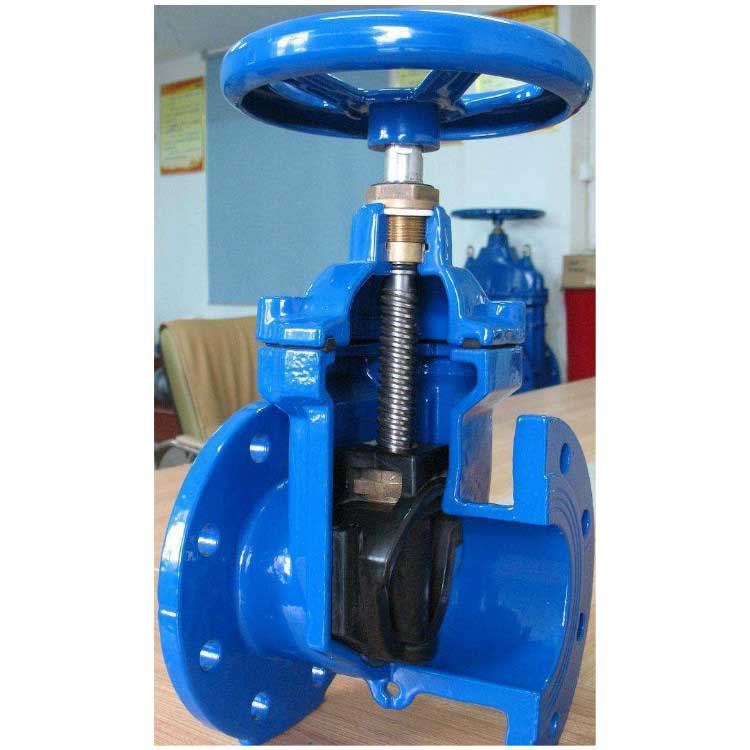

A flexible wedge gate valve is a type of gate valve designed to compensate for seat misalignment and thermal expansion by using a specially engineered wedge that can flex slightly under pressure. This makes it ideal for applications involving temperature fluctuations or repeated thermal cycling — such as steam lines and high-temperature systems.
🔧 What Is a Flexible Wedge Gate Valve?
Unlike a solid wedge, the flexible wedge has a groove or notch (typically in the center or edge of the wedge) that allows the disc to flex slightly. This design ensures better seating, especially under conditions of:
High temperature changes
Uneven pressure
Slight seat misalignment
The valve closes by pushing the wedge into the seat rings on both sides, creating a tight metal-to-metal seal.
🛠️ Key Features
Two-seating surfaces ensure tight shutoff
Flexible disc design accommodates pipe stress and deformation
Rising or non-rising stem options for different installation needs
Bidirectional sealing – can block flow in both directions
Full port opening – allows unrestricted media flow when open
🧱 Common Materials
| Component | Typical Materials |
|---|---|
| Body/Bonnet | Cast steel, ductile iron, stainless steel |
| Wedge Disc | Stainless steel, bronze, alloy steel |
| Stem | Stainless steel or chrome-plated steel |
| Seat Rings | Hard-faced metal (e.g., Stellite) |
📌 Where Flexible Wedge Gate Valves Excel
Flexible wedge gate valves are commonly used in applications where thermal expansion or pipe misalignment could compromise a solid wedge valve. Typical applications include:
Steam distribution systems
Power plants (high-pressure/high-temp steam lines)
Petrochemical and refinery operations
High-temperature water systems (boiler feed, condensate lines)
✅ Advantages of Flexible Wedge Gate Valves
Thermal shock resistance – prevents jamming under rapid temperature changes
Self-aligning seat contact – ensures proper sealing even when pipe alignment is imperfect
Reduced seat wear – due to more even pressure distribution
Longer service life in cyclic temperature environments
⚠️ Limitations
Not suitable for throttling or flow regulation (risk of vibration and seat damage)
More complex manufacturing than solid wedge designs
Higher initial cost compared to standard gate valves
🔍 Flexible Wedge vs Solid Wedge Gate Valves
| Feature | Flexible Wedge | Solid Wedge |
|---|---|---|
| Temperature tolerance | Excellent (flexes under heat) | Prone to thermal binding |
| Seat alignment | Self-adjusting | Requires perfect alignment |
| Cost | Higher | Lower |
| Maintenance | Moderate | Simple |
🔚 Conclusion
The flexible wedge gate valve is a high-performance solution designed for demanding conditions involving thermal stress, high pressure, and tight shutoff requirements. Its flexibility makes it a superior choice over traditional gate valves in steam and power plant applications.
If you’re selecting valves for a critical system involving temperature variations, a flexible wedge gate valve offers long-term reliability and safety.
