Is your home experiencing consistently high water pressure? Are your faucets spraying with excessive force, or do your appliances seem to wear out faster than they should? High water pressure isn’t just an annoyance; it can be detrimental to your entire plumbing system, leading to damaged pipes, leaky fixtures, and reduced lifespan for water-using appliances like water heaters, washing machines, and dishwashers. The solution often lies in installing a water pressure reducing valve (PRV), a vital component that regulates and stabilizes incoming water pressure.
This guide will walk you through the process of installing a PRV, empowering you to protect your home’s plumbing and enjoy consistent, safe water pressure.
Why Install a Water Pressure Reducing Valve?
A PRV’s primary function is to lower and maintain water pressure from the municipal supply (which can often exceed 80 PSI) to a safe and manageable level within your home, typically between 40-60 PSI. This provides several benefits:
- Appliance Longevity: Protects washing machines, dishwashers, and water heaters from high-pressure wear and tear.
- Leak Prevention: Reduces stress on pipes and fittings, minimizing the risk of leaks and bursts.
- Water Conservation: Prevents excessive water use, especially during tasks like showering or faucet use.
- Comfort: Ensures a comfortable and consistent flow from all faucets.
- Compliance: Many local plumbing codes require PRVs if incoming pressure exceeds a certain threshold.
Tools and Materials You’ll Need:
Before you begin installing a water pressure reducing valve, gather all necessary tools and materials. This preparation will make the process much smoother.
- New Water Pressure Reducing Valve: Choose a high-quality PRV with union connections for easier installation and future maintenance. Ensure it’s the correct pipe size (e.g., 3/4 inch or 1 inch).
- Water Pressure Gauge: Essential for measuring and adjusting PRV water pressure after installation.
- Pipe Cutter: For cutting copper, PEX, or PVC pipes cleanly.
- Measuring Tape: For precise measurements.
- Two Adjustable Wrenches or Pipe Wrenches: For tightening fittings.
- Emery Cloth or Sandpaper: For cleaning copper pipes.
- Flux and Solder (for copper pipes): If you’re soldering.
- Propane Torch (for copper pipes): If you’re soldering.
- Thread Sealant Tape (Teflon tape) or Pipe Dope: For sealing threaded connections.
- Bucket and Rags: For catching water and cleaning up spills.
- Safety Glasses and Gloves.
- Optional:
- Unions and Adapters: If your PRV doesn’t come with them, or if you’re transitioning between different pipe materials.
- Copper Fittings (couplings, elbows): If you need to reconfigure piping.
- PEX Crimp Rings and Crimping Tool (for PEX pipe).
- PVC Cement and Primer (for PVC pipe).
- Thermal Expansion Tank: Highly recommended if you have a closed water system (e.g., a check valve on the main line or an existing PRV) and a hot water heater.
Pre-Installation Steps: Preparation is Key
- Locate the Main Water Shut-Off Valve: This is typically found near your water meter or where the main water line enters your house.
- Turn Off the Main Water Supply: Rotate the handle or valve until the water supply to your home is completely shut off.
- Drain the Pipes: Open the lowest faucet in your house (e.g., a basement sink or outdoor spigot) and the highest faucet (e.g., an upstairs bathroom) to drain as much water as possible from the pipes. This relieves pressure and minimizes spills during the installation.
- Choose the Installation Location: The PRV is typically installed on the main water line after the main shut-off valve and before any other branches to ensure it regulates pressure for the entire house. Choose a spot that allows easy access for future adjustments and maintenance. Ensure there’s enough straight pipe on either side of the chosen location for the valve and any necessary fittings.
Step-by-Step Guide to Installing Your Water Pressure Reducing Valve:
Remember to always follow the manufacturer’s specific instructions for your PRV model.
- Measure and Mark:
- Hold the PRV (with any attached unions or adapters) against the pipe where you intend to install it.
- Carefully measure the exact length of pipe that needs to be removed to accommodate the PRV.
- Mark the cut lines on the pipe.
- Cut the Pipe:
- Use your pipe cutter to make clean, straight cuts at the marked locations.
- Be prepared for some residual water to drain. Have your bucket and rags ready.
- Deburr the cut edges of the pipe if necessary (especially for copper or PVC) to ensure smooth flow.
- Prepare Pipe Ends and Fittings:
- For Copper: Clean the outside of the pipe ends and the inside of the union/adapter fittings with emery cloth. Apply flux to both surfaces.
- For PEX: Ensure cuts are clean. Attach PEX fittings using appropriate crimp rings and a crimping tool.
- For PVC: Clean pipe ends and fitting interiors. Apply PVC primer, then PVC cement, and join the pieces.
- Assemble Union Connections (if separate):
- Most PRVs come with union connections, which are crucial for future removal and replacement without cutting pipes again. Attach the union halves to the incoming and outgoing pipe sections, either by soldering (copper), crimping (PEX), or cementing (PVC).

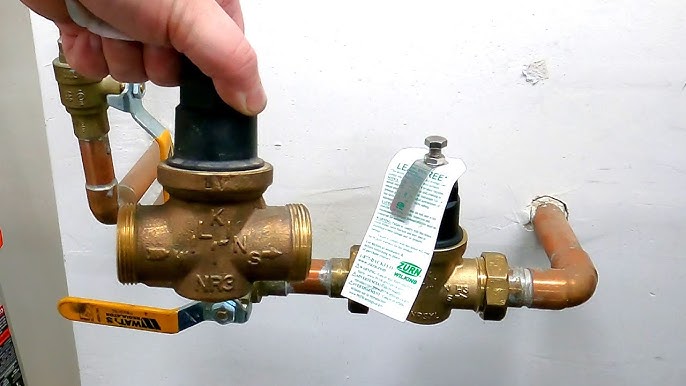

- Install the PRV:
- Pay close attention to the flow direction arrow on the PRV body. This arrow must point in the direction of water flow (towards your house). Installing it backward will block water flow.
- Align the PRV between the two pipe sections.
- Hand-tighten the union nuts onto the PRV body.
- Tighten Connections:
- Use two wrenches to tighten the union nuts securely onto the PR PRV body. Use one wrench to hold the valve steady and the other to tighten the nut. Avoid overtightening, especially with plastic pipes.
- If you’re soldering copper, carefully solder the union halves to the main pipe and then tighten the union nuts onto the PRV after the joints have cooled.
Post-Installation & Important Considerations:
- Slowly Restore Water Supply:
- Once all connections are secure, slowly open your main water shut-off valve. Do it gradually to prevent water hammer and sudden pressure surges.
- As water fills the pipes, listen for air escaping from open faucets. Once water starts flowing from the faucets, close them.
- Check for Leaks: Carefully inspect all newly made connections for any signs of water leaks. Tighten as needed.
- Adjusting the PRV Water Pressure:
- With the water supply fully restored, connect your water pressure gauge to a faucet.
- Most new PRVs are factory-set around 50 PSI. If your desired pressure is different, you’ll need to adjust it.
- Locate the adjustment screw (usually on the top of the PRV) and its locknut.
- Loosen the locknut.
- Turn the adjustment screw: Clockwise to increase pressure, counter-clockwise to decrease pressure.
- Make small adjustments (quarter to half turns), then open a faucet for a minute to stabilize the pressure, and re-check the gauge. Repeat until you reach your desired pressure.
- Once satisfied, tighten the locknut to secure the setting. (For more detailed instructions on adjusting the water pressure regulator, refer to our dedicated guide on “Water Pressure Reducing Valve Adjustment”).
- Consider a Thermal Expansion Tank:
- If you have a closed water system (e.g., a check valve on the main line or the PRV itself acts as a check valve) and a hot water heater, installing a PRV can create a “closed” system. As hot water heats, it expands, creating dangerously high pressure in a closed system.
- A thermal expansion tank absorbs this expansion, preventing excessive pressure buildup. It is highly recommended to install one if you don’t already have one in a closed system with a hot water heater.
- Bypass Loop (Optional but Recommended for Commercial/Critical Systems):
- For larger or more critical applications, a bypass loop around the PRV can be installed. This allows you to temporarily divert water around the PRV during maintenance or replacement without completely shutting off water to the building.
Conclusion
Installing a water pressure reducing valve is a proactive step that safeguards your home’s plumbing infrastructure, extends the life of your appliances, and enhances your daily comfort. While it’s a manageable DIY project for those comfortable with basic plumbing, don’t hesitate to consult a licensed plumber if you encounter any difficulties or feel unsure about any step. Proper installation ensures efficient performance and long-term protection for your valuable property.
