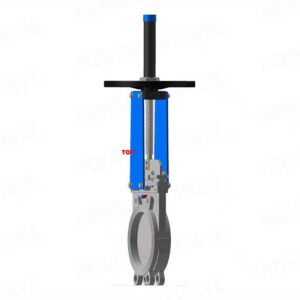

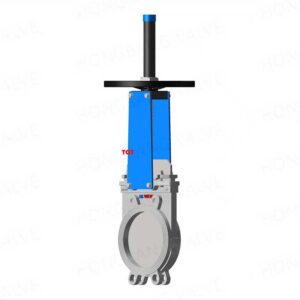

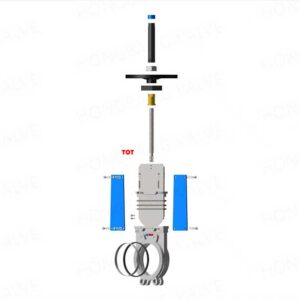

DN200 Knife Gate Valve (8 Inch)

The DN200 Knife Gate Valve represents the pinnacle of industrial valve engineering for 8-inch pipeline applications. Featuring an ultra-sharp knife-edge gate design, this heavy-duty valve excels in the most challenging service conditions involving fibrous slurries, abrasive media, and high-consistency suspensions. Engineered for continuous operation in pulp mills, large-scale wastewater facilities, mining operations, and process industries, the DN200 delivers uncompromising performance and reliability.

Technical Specifications

Basic Parameters

Nominal Diameter: DN200 (8 inches)
Bore Diameter: Full port 200mm (7.87″)

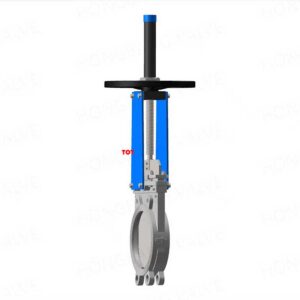

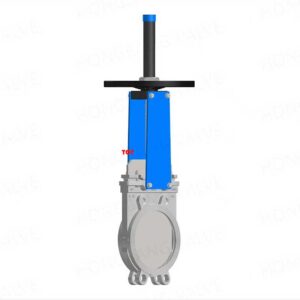

Connection Type: ANSI/ASME flanged, DIN/EN flanged, Wafer, Lug style, Welded end
Structure: Rising stem, Non-rising stem, Enclosed design

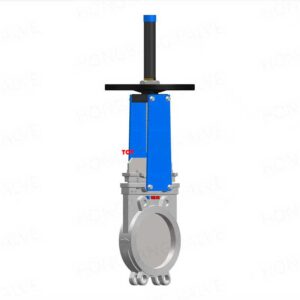

Actuation: Manual, Pneumatic, Electric, Electrohydraulic, Hydraulic
Flow Direction: Bidirectional with equal sealing performance

Pressure Classifications

ANSI Class: 150, 300, 600, 900 (Class 1500 available)
DIN/EN Rating: PN6, PN10, PN16, PN25, PN40, PN63
Working Pressure: 1.0-6.3 MPa (145-914 PSI)
Maximum Pressure: Up to 10.0 MPa (1450 PSI) with special design

Temperature Specifications

Standard Operating Range: -29°C to +232°C (-20°F to +450°F)
Extended Range: -46°C to +427°C (-50°F to +800°F) with special materials
Cryogenic Service: Down to -196°C (-321°F) with LN2 compatible materials
High Temperature: Up to 650°C (1200°F) with refractory materials

Physical Dimensions

Face-to-Face: Per ASME B16.10, EN 558-1, API 6D
Overall Height: 650-950mm (varies by stem type and actuation)
Flange Drilling: ASME B16.5, EN 1092-1, API 6A, JIS B2220
Approximate Weight: 85-180 kg (depending on materials and configuration)

Advanced Design Features

Cutting-Edge Technology

Premium Knife Gate: Precision-machined hardened steel edge with 30° bevel angle
Enhanced Seat Design: Replaceable resilient or metal seats with groove geometry
Streamlined Body: Computational fluid dynamics optimized internal profile
Advanced Packing System: Live-loaded chevron packing with lantern ring
Corrosion Barrier: Optional lined body with PTFE, PFA, or rubber lining

Superior Performance Characteristics

Exceptional Cutting Action: Handles up to 8% consistency pulp and heavy slurries
Zero Leakage Sealing: Achieves API 598 Class VI (bubble-tight) shut-off
Ultra-Low Torque: Optimized geometry reduces operating force by up to 40%
Extended Cycle Life: 50,000+ cycles under normal operating conditions
Minimal Maintenance: Field-replaceable components and self-adjusting packing

Intelligent Features

Position Indication: Visual stem position indicator standard
Limit Switches: Configurable open/closed position switches
Torque Monitoring: Load sensing capability for predictive maintenance
Emergency Operation: Manual override for automated valves
Diagnostics Ready: HART, Foundation Fieldbus, or Profibus PA compatible

Premium Material Options

Body & Bonnet Construction

Cast Iron: ASTM A126 Class B, ASTM A48 Class 30, EN-GJL-250
Ductile Iron: ASTM A395 Grade 60-40-18, EN-GJS-450-10
Carbon Steel: ASTM A216 WCB, A352 LCB/LCC (low temperature)
Low Alloy Steel: A217 WC6, WC9 (chrome-moly service)
Stainless Steel Grades:
- CF8 (304): General purpose, good corrosion resistance
- CF8M (316): Marine and chemical applications
- CF3 (304L): Low carbon for welded construction
- CF3M (316L): Superior corrosion resistance
- CN7M (Alloy 20): Excellent chemical resistance
- CK3MCuN (Super Duplex 2507): High strength/corrosion resistance

Gate & Stem Materials

Standard Stainless Steel: 304, 316, 316L with standard hardness
Hardened Stainless: 17-4PH, 15-5PH heat treated to 38-42 HRC
Super Duplex: 2507, Zeron 100 for severe service
Exotic Alloys: Hastelloy C-276, Inconel 625, Monel 400
Specialized Coatings:
- Hard chrome plating (62-65 HRC surface hardness)
- Ceramic spray coating for extreme abrasion resistance
- Stellite 6 overlay for high-temperature service
- Tungsten carbide coating for maximum wear resistance

Sealing Solutions

Elastomeric Options:
- NBR (Nitrile): -40°C to +120°C, petroleum products
- EPDM: -45°C to +150°C, steam, ozone, weather resistance
- Viton (FKM): -15°C to +200°C, chemicals, acids, solvents
- HNBR: -30°C to +150°C, enhanced oil and heat resistance
- Kalrez (FFKM): -15°C to +327°C, universal chemical resistance
- Aflas (FEPM): -10°C to +200°C, steam and amine resistance
Metal Sealing:
- 316 SS laminated construction for high-temperature service
- Stellite 6 hard-faced seats for abrasive media
- Hastelloy C-276 for corrosive applications

Comprehensive Applications

Pulp & Paper Industry

Stock Preparation: Consistency regulation, reject handling, cleaning systems
Bleaching Operations: ClO2, H2O2, O2 delignification systems
Paper Machine Systems: Headbox, wire pit, saveall operations
Recovery Systems: Black liquor, green liquor, white liquor handling
Deinking Plants: Flotation cells, wash systems, sludge handling

Municipal & Industrial Water Treatment

Primary Treatment: Grit removal, primary clarifier systems
Secondary Treatment: Activated sludge, biological nutrient removal
Sludge Processing: Thickening, dewatering, digester feed/withdrawal
Advanced Treatment: Membrane bioreactors, tertiary filtration
Chemical Feed: Polymer, coagulant, disinfectant injection systems

Mining & Metallurgical Operations

Ore Processing: Grinding circuits, classification, flotation
Tailings Management: Thickener underflow, pipeline transport
Hydrometallurgy: Leaching circuits, CIP/CIL systems, electrowinning
Coal Preparation: Heavy media separation, flotation, dewatering
Mineral Concentrates: Handling and transport of concentrates

Chemical & Petrochemical Processing

Reactor Systems: Catalyst slurry handling, polymer processing
Crystallization: Batch and continuous crystallizer operations
Separation Processes: Centrifuge feed, filter press applications
Waste Treatment: Neutralization, precipitation, sludge handling
Specialty Chemicals: Pigments, pharmaceuticals, fine chemicals

Power Generation

Coal-Fired Plants: Ash handling, FGD systems, coal preparation
Biomass Plants: Fuel handling, ash removal, emission control
Nuclear Plants: Radwaste processing, resin handling (non-nuclear service)
Geothermal: Brine handling, silica removal, injection systems

Engineering Standards & Certifications

International Design Standards

Primary Standards: API 6A, ASME B16.34, EN 19434, ISO 14313
Testing Protocols: API 598, ISO 5208, EN 12266-1, MSS SP-81
Dimensional Standards: ASME B16.10, EN 558-1, ISO 5752, API 6D
Flange Standards: ASME B16.5/B16.47, EN 1092-1, JIS B2220, API 6A
Material Specifications: ASTM, ASME, EN, JIS, API standards

Quality Management Systems

ISO 9001:2015: Quality Management System certification
ISO 14001:2015: Environmental Management System
ISO 45001:2018: Occupational Health & Safety Management
API Q1 9th Edition: Quality management for oil & gas industry
ASME Section VIII: Pressure vessel design and fabrication authorization

Product Certifications

CE Marking: Pressure Equipment Directive 2014/68/EU compliance
API 6A Monogram: PSL 1-4 product specification levels
CRN Registration: Canadian Registration Numbers where required
SIL Certification: IEC 61508/61511 functional safety up to SIL 3
Fire Safety: API 607, ISO 10497 fire testing available
Fugitive Emissions: ISO 15848, API 622/624, TA-Luft compliance

Advanced Actuation Systems

Pneumatic Actuation

Spring Return Actuators:
- Fail-safe close or fail-safe open configurations
- Compact scotch yoke design for high torque output
- Corrosion-resistant epoxy-coated aluminum construction
- Operating pressures: 4-8 bar (60-120 PSI)
- Response times: <5 seconds typical
Double Acting Actuators:
- Precise positioning with modulating control capability
- Rack and pinion or scotch yoke mechanisms
- Stainless steel construction for harsh environments
- Optional pneumatic actuator packages with accessories

Electric Actuation

Multi-Turn Electric Actuators:
- 90-690V AC or 24/48V DC power options
- Integral or NEMA 4X/IP67 control enclosures
- Digital positioning with 4-20mA, HART, or fieldbus communication
- Manual override capability and local control options
- Motor protection and diagnostic capabilities
Intelligent Actuation:
- Integrated valve controllers with PID control
- Asset management and predictive maintenance features
- Wireless communication capability (WirelessHART)
- Cyber security features per IEC 62443 standards

Hydraulic & Electrohydraulic

Hydraulic Cylinders: Custom designed for extreme force requirements
Electrohydraulic Systems: Precise positioning for critical control applications
Accumulator Systems: Emergency operation capability
Explosion-Proof Ratings: Class I Div 1, ATEX Zone 1 available

Installation & Commissioning

Pre-Installation Requirements

Design Verification: Confirm P&ID specifications and service conditions
Infrastructure Assessment: Verify adequate structural support and clearances
Utility Requirements: Check pneumatic, hydraulic, or electrical supplies
Safety Considerations: Lockout/tagout procedures, confined space entry

Installation Best Practices

Lifting & Rigging: Use certified lifting points and proper rigging techniques
Pipeline Preparation: Ensure proper cleaning, flushing, and alignment
Gasket Selection: Verify compatibility with service media and temperature
Bolt Torquing: Follow ASME PCC-1 guidelines for flange assembly
Insulation Considerations: Maintain access to packing and stem areas

Commissioning Procedures

Functional Testing: Verify smooth operation throughout full stroke
Seat Leakage Testing: Confirm acceptable leakage rates per specifications
Actuator Calibration: Set position limits and control signal ranges
Safety System Integration: Test emergency shutdown and fail-safe operation
Documentation: Record as-built configuration and test results

Comprehensive Maintenance Program

Predictive Maintenance Technologies

Vibration Monitoring: Stem and actuator bearing condition assessment
Thermography: Electrical connection and motor winding analysis
Ultrasonic Testing: Gate and seat wear detection
Motor Current Analysis: Electric actuator performance trending
Partial Stroke Testing: Safety valve performance verification

Scheduled Maintenance Intervals

Monthly: Visual inspection, position indication verification
Quarterly: Actuator lubrication, control signal calibration
Semi-Annual: Complete functional testing, torque measurement
Annual: Internal inspection (where feasible), packing adjustment
Biennial: Comprehensive overhaul and recertification

Spare Parts Program

Critical Spares: Seats, packing sets, actuator components
Recommended Inventory: Based on valve criticality and lead times
Genuine Parts Guarantee: Factory authorization and traceability
Emergency Support: 24/7 parts availability for critical applications
Life Cycle Support: Minimum 15-year parts availability commitment

Technical Selection Guide

Application Suitability Matrix

Media Type	Consistency/Concentration	Recommended Gate Material	Seat Material
Paper Pulp	Up to 8%	17-4PH Hardened	EPDM/NBR
Municipal Sludge	2-6% solids	316 SS Standard	EPDM
Mining Slurry	Up to 60% solids	Hard Chrome Plated	Metal Seat
Chemical Slurry	Varies	Hastelloy C-276	PTFE/Kalrez
Food Products	Up to 15%	316L Electropolished	FDA Approved Elastomer

Performance Selection Criteria

Flow Velocity: Maximum recommended 3-5 m/s for abrasive media
Temperature Cycling: Consider thermal expansion and material compatibility
Pressure Drop: Full-bore design minimizes losses across valve
Cycling Frequency: Standard design suitable for 10-50 cycles/day
Emergency Service: Fast-acting pneumatic actuators recommended

Global Support Network

Engineering Services

Application Engineering: CFD analysis, material selection, custom design
Project Management: Turnkey solutions from design through commissioning
Technical Training: Comprehensive programs for operators and maintenance staff
Retrofit Services: Upgrading existing installations with latest technology

Service Capabilities

Field Service: Factory-trained technicians available globally
Repair Services: Authorized service centers with OEM parts and procedures
Emergency Response: 24/7/365 support hotline and rapid response teams
Performance Optimization: Valve audits and efficiency improvement programs

Warranty & Support

Standard Warranty: 18 months from shipment or 12 months from startup
Extended Warranty: Up to 5 years available with service contracts
Performance Guarantee: Flow, leakage, and operating torque guarantees
Life Cycle Support: Asset management and obsolescence planning

Contact Information: For detailed engineering consultation, custom specifications, or immediate technical support, contact our specialized DN200 knife gate valve engineering team.

Global Availability: Manufacturing facilities and service centers located strategically worldwide to support your operations with local expertise and rapid response capabilities.
