Wafer Segmented Ball Valve

Wafer segmented ball valves, also known as wafer V-notch ball valves, are quarter-turn valves used to control pipeline fluid flow. The ball of this type of ball valve has a V-notch, which has a sharp edge. During the rotation of the ball, there is a wiping effect between the closing parts, which has a strong cutting force on the medium. The V-notch of the ball forms a fan-shaped area with the valve seat flow channel, which can change the flow channel cross-sectional area during the rotation process, which can achieve appropriate flow regulation and has high capacity.

TOT Valve As a reliable segmented ball valve manufacturer, it builds valves for harsh applications. Its rugged design can cope with harsh processes and fluid challenges containing solid particles, fibrous/unclean media. TOT provides precise and reliable control and extremely high rangeability, making it an ideal choice for chemical processing and oil and gas applications.

Contact us now to choose a solution that can improve the performance efficiency and stability of your fluid control system.

Description

Segmented ball valves can easily control corrosive fluid slurries and work in environments that require high durability.

TOT segmented ball valves are called “segmented” because the ball inside the valve is not a complete sphere, but a V-notch on the sphere. This valve design can give your fluid control system high capacity, tight sealing and non-clogging flow control.

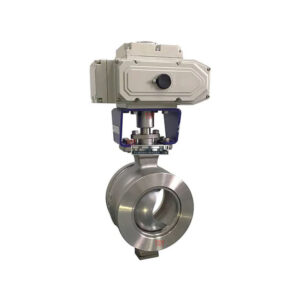

Segmented ball valves are an angular turn regulating valve with the same sealing performance as ordinary ball valves, and both regulating and switching functions. At TOT Valve, you can choose to match it with pneumatic or electric actuators and use it in your industrial process automation system.

We also provide customized segmented ball valves according to your required size, material, end connection method and surface treatment. If you are not sure about your specific needs, the TOT Valve team will consider the pressure level, operating temperature, operation type and other factors of your application scenario to make a suitable recommendation for you. Contact us now and let TOT Valve help your business take off.

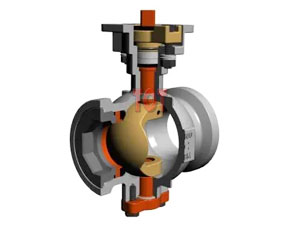

Wafer Segmented Ball Valve Features

Quarter-turn valve
V-notch provides equal percentage flow control
Uni-body prevents external leakage
Durable metal seat
Live loaded packing, protected bearing
ISO 5211 Direct-Mounting for easy automation
Extremely low actuator torque
Stainless steel, carbon steel, alloy materials available
Pressure Level: PN10-25; 150Lb; 10K
Drive Device: manual, pneumatic, electric, electro-hydraulic
Accessories: electrical valve positioner, solenoid valve, limit switch, air filter pressure reducer, etc.

Design Standards

TOT Valve provides different types of segmented ball valves that comply with ISO and ASME standards.

Pressure & Temperature	Structural Length	Temperature Range	Sealing & Strength Test Standards
ASME B16.34-2003, ISO 7005-1	ISA S75.04-1995, IEC/DIN 534-3-2	-29℃ ~ 450℃	GB/T 4213-2007

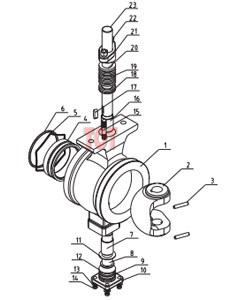

Wafer Segment Ball Valve Main Components and Materials

The TOT segmented ball valve is well-made and easy to operate and clean. It consists of a durable stainless steel metal body, self-lubricating bearings, a low-friction shaft and a segmented ball. In addition, a variety of seat options are available, such as metal seats or soft seats. Below is a summary of the main components of the segmented ball valve and their component materials for you to choose from.

Valve Stem: The valve stem is finely ground and matched with the actuator with high precision, making the valve backlash small

Valve Body: The valve body adopts an integral structure with good rigidity, reducing the possibility of leakage

Packing: The packing is made of high-quality PTFE material with good sealing

Bearing: The bearing adopts self-lubricating bearing with high load-bearing capacity, small friction coefficient, and reduced operating torque

Spring: The spring adopts a special hexagonal spring, which reduces the friction between the ball and the valve seat while providing preload, making the valve operating torque smaller

Ball: The ball with a V-notch is hard chrome plated, ion nitrided or supersonic sprayed on the spherical surface to improve the surface hardness, so that the ball mouth has a hard and sharp edge with shearing function for the medium

Valve Seat: The special bonnetless design makes there is no dead angle between the valve seat and the valve body, the medium is not easy to accumulate, and the solid particle medium will not be stuck

No.	Name	Material
1	Body	WCB	CF8	CF8M
2	Core	CF8 surface hard nickel plating	CF8 surface hard nickel plating	CF8M surface hard nickel plating
3	Cylindrical Pin	304	304	316
4	Seat	304 cladding carbide	304 cladding carbide	316 cladding carbide
5	Spring	316	316	316
6	O-ring	Fluororubber	Fluororubber	Fluororubber
7	Self-lubricating bearing	304+PTFE	304+PTFE	316+PTFE
8	Lower Valve Stem	20Cr13	304	316
9	O-ring	Fluororubber	Fluororubber	Fluororubber
10	Rear Gland	WCB	CF8	CF8M
11	Ring Washer	PTFE	PTFE	PTFE
12	Adjusting Washer	PTFE	PTFE	PTFE
13	Flat Washer	Q235	304	304
14	Bolt	25	304	304
15	Stud	25	304	304
16	Self-lubricating bearing	304+PTFE	304+PTFE	316+PTFE
17	Flat key	20Cr13	304	316
18	Lower Packing	PTFE	PTFE	PTFE
19	Middle Packing	PTFE	PTFE	PTFE
20	Upper Packing	PTFE	PTFE	PTFE
21	Package Gland	WCB	CF8	CF8M
22	Nut	35	304	304
23	Upper Valve Stem	20Cr13	304	316

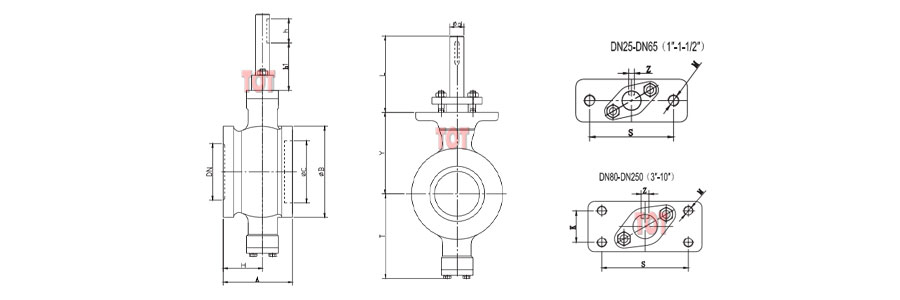

Wafer Segment Ball Valve Overall Dimensions

TOT Valves can provide you with various sizes of wafer segmented ball valves. We have listed some wafer segmented ball valve sizes suitable for PN10/PN16/150LB for your reference.

If you do not have the wafer segmented ball valve size you need, you can contact us immediately. Our professional sales manager will contact you and can provide you with exclusive ODM and OEM services.

Size		A	B	C	T	Y	L	φd	h	S	K	M	Z
DN	Inch	A	B	C	T	Y	L	φd	h	S	K	M	Z
25	1″	50	68	38	81	73	75	16	35	75	–	2-M10	5
32	1-1/4″	60	76	45	86	78	75	16	35	75	–	2-M10	5
40	1-1/2″	60	84	50	90	80	75	16	35	75	–	2-M10	5
50	2″	75	100	62	93	90	75	16	35	75	–	2-M10	5
65	2-1/2″	100	118	73	108	105	75	16	35	75	–	2-M10	5
80	3″	100	132	90	123	118	75	20	35	90	8	4-M10	6
100	4″	115	158	115	138	130	75	20	35	90	28	4-M10	6
125	5″	129	184	134	148	145	90	32	40	90	28	4-M10	8
150	6″	160	216	164	170	170	94	32	50	110	40	4-M12	8
200	8″	200	268	206	200	201	94	40	50	110	40	4-M12	8
250	10″	240	326	260	240	237	98	40	60	135	40	4-M16	12
